80W 7070 high-power LED bead projection lamp logo lamp advertising lamp pattern lamp light source
Parameter specification
Brand: Yuanke
Name: 7070 80W blue light
Model: YK-7070S80B-80W
Wavelength: 450-460NM
Brightness: 600-800LM
Explicit: None
Power: 80W
Current: 6000MA
Voltage: 12-14V
Luminous angle: 120 degrees
Raw material: alumina support/eutectic process
Reel: 100pcs/box

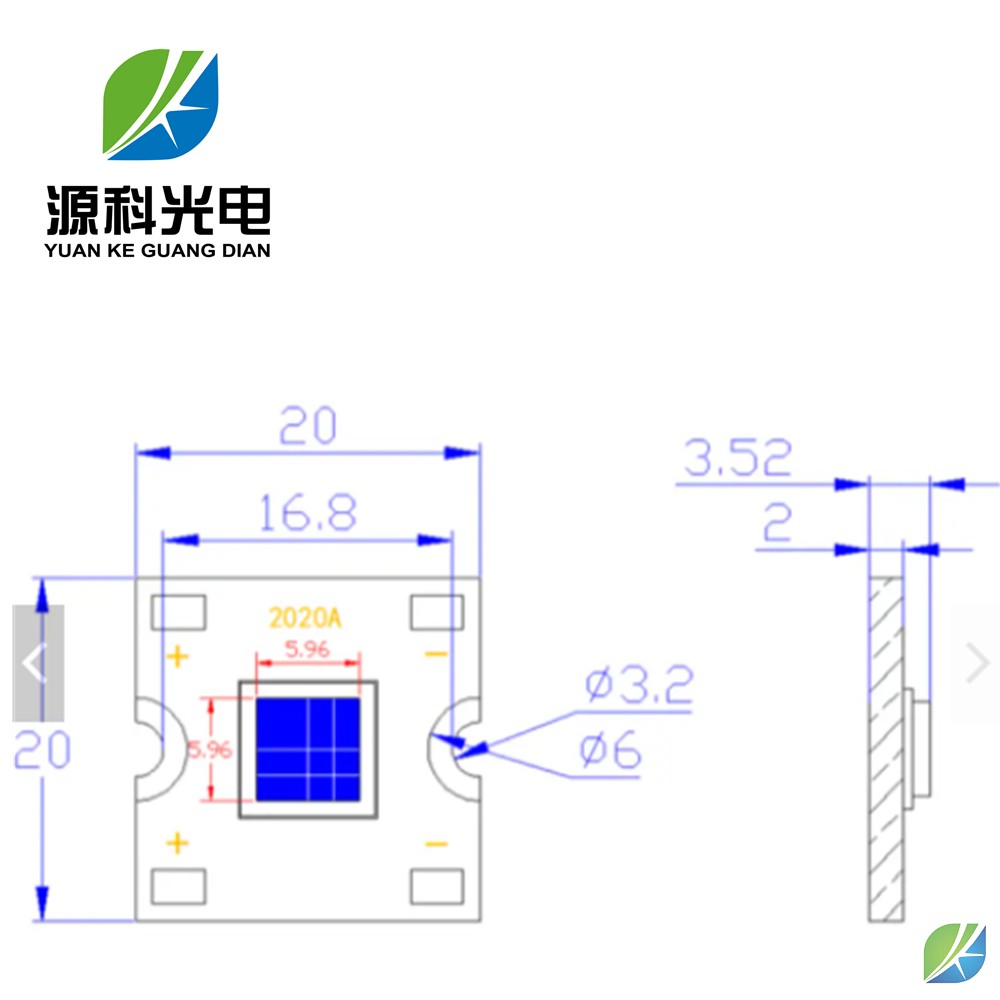

Overall dimension: 20 (length) * 20 (width) * 3.5 (thickness) MM
Product features:
Eutectic technology of flip chip
Aluminum nitride ceramic substrate
High thermal conductivity copper substrate
High density, high power, small light emitting surface
